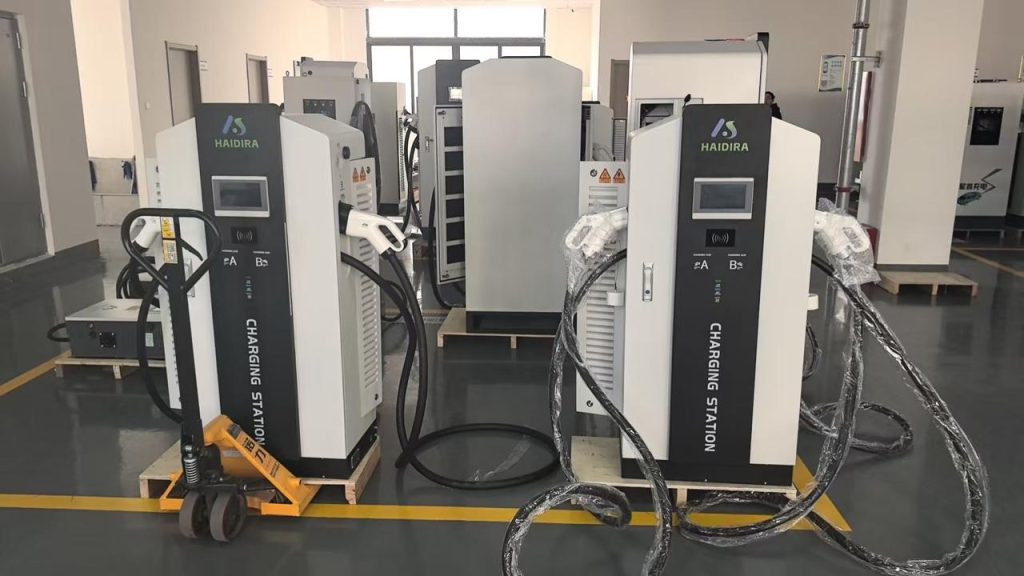

This product is the company’s core product,its performance and appearance level,with the characteristic of high-speed charging efficient and stable.become the mainstream products purchased by buyers.
PRODUCT ADVANTAGE
- Energy saving and efficient
- Safe and reliable
- Intelligent interaction
Equipment parameter
| Equipment type | HDRCDJ-160KW-2 | HDRCDJ-180KW-2 | HDRCDJ-240KW-2 | HDRCDJ-360KW-2 |
| Standard | National standard/European standard | |||
| Input voltage range | 380+-15% | 380+-15% | 380+-15% | 380+-15% |
| Frequency range(HZ) | 45-66 | 45-66 | 45-66 | 45-66 |
| Input power factor electricity | ≥0.99 | ≥0.99 | ≥0.99 | ≥0.99 |
| Current harmonic(THDI) | ≥5% | ≥5% | ≥5% | ≥5% |
| Efficiency | ≥96% | ≥96% | ≥96% | ≥96% |
| Output voltage range(V) | 200-1000 | 200-1000 | 200-1000 | 200-1000 |
| Constant power range(V) | 300-1000 | 300-1000 | 300-1000 | 300-1000 |
| Output power(KW) | 160KW | 180KW | 240KW | 360KW |
| Maximum output current (A) | 320 | 360 | 480 | 720 |
| Charging interface | 2 | 2 | 2 | 2 |
| Charging gun length(M) | 5m | 5m | 5m | 5m |
Other information
| Steady flow accuracy | ≤+-1% | ≤+-1% |
| Voltage regulation accuracy | ≤+-0.5% | ≤+-0.5% |
| Output current error | ≤+-1% | ≤+-1% |
| Output voltage error | ≤+-0.5% | ≤0.5% |
| Degree of unbalance | ≤+-0.5% | ≤0.5% |
| Communication mode | OCPP | OCPP |
| Heat dissipation control | Air cooling | Air cooling |
| Class of protection | IP54 | IP54 |
| BMS auxiliary power supply | 12V/24V | 12V/24V |
| Reliability (MTBF) | 50000 | 50000 |
| Dimension(W*D*H)mm | 720*580*1700 | 810*762*1750 |
| Routing mode | Down line | Down line |
| Operation temperature(℃) | -20~50 | -20~50 |
| Storage temperature(℃) | -20~70 | -20~70 |
| Option | Charging gun 8m/10m | Charging gun 8m/10m |
